BTU Pyramax 98A Oven

Category:
  • Description

Description

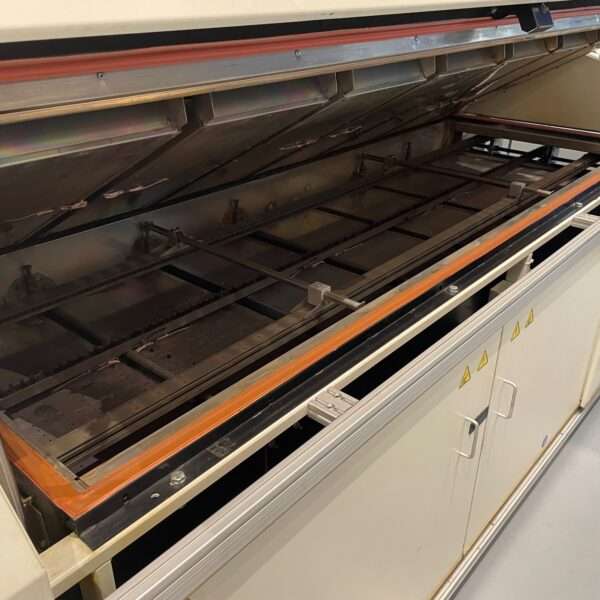

BTU Pyramax 98A – Reflow Oven

Serial Nr: AMSW-3

Manufactured Year: 2006

Direction: Right to Left

Lead Free

Heating Zones: 7 Zones, Top and Bottom

Heated Length (mm): 2.489

Max. Temperature: 350C

Cooling Zone: 1 Zone on the Top

Cooling Length (mm): 711

Conveyor Speed: 25 – 152 cm/min

Conveyor Width (mm): 51 – 457

Automatic Conveyor Width

Centre Board Support

Windows XP 2002 SP2

Wincon Version: 6.5

Voltage: 400V, 3 Phase, 50/60Hz

Dimension (mm): 4.521 x 1.524 x 1.524

Weight: 1.591 kg
