Description

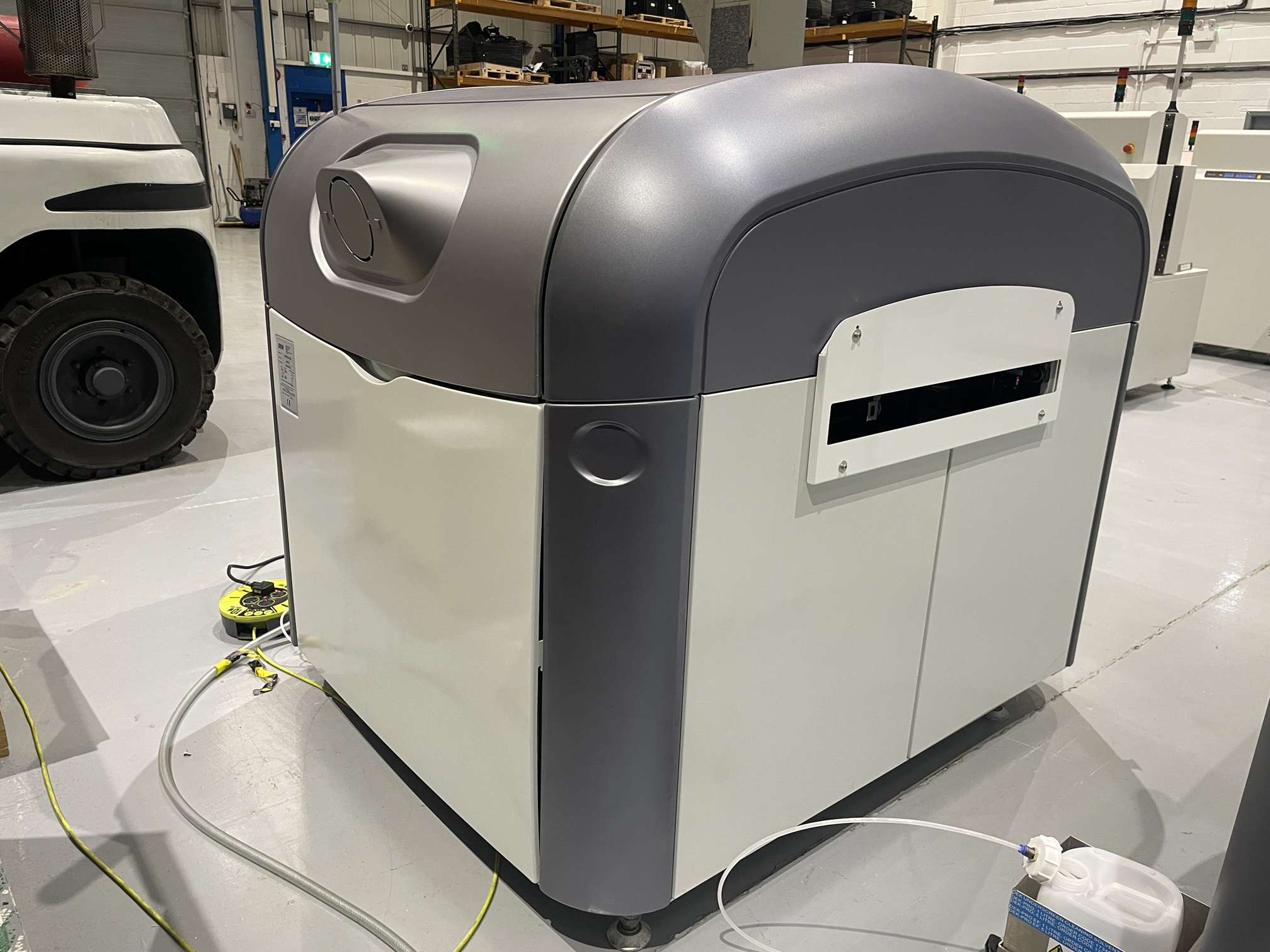

DEK Horizon 03iX

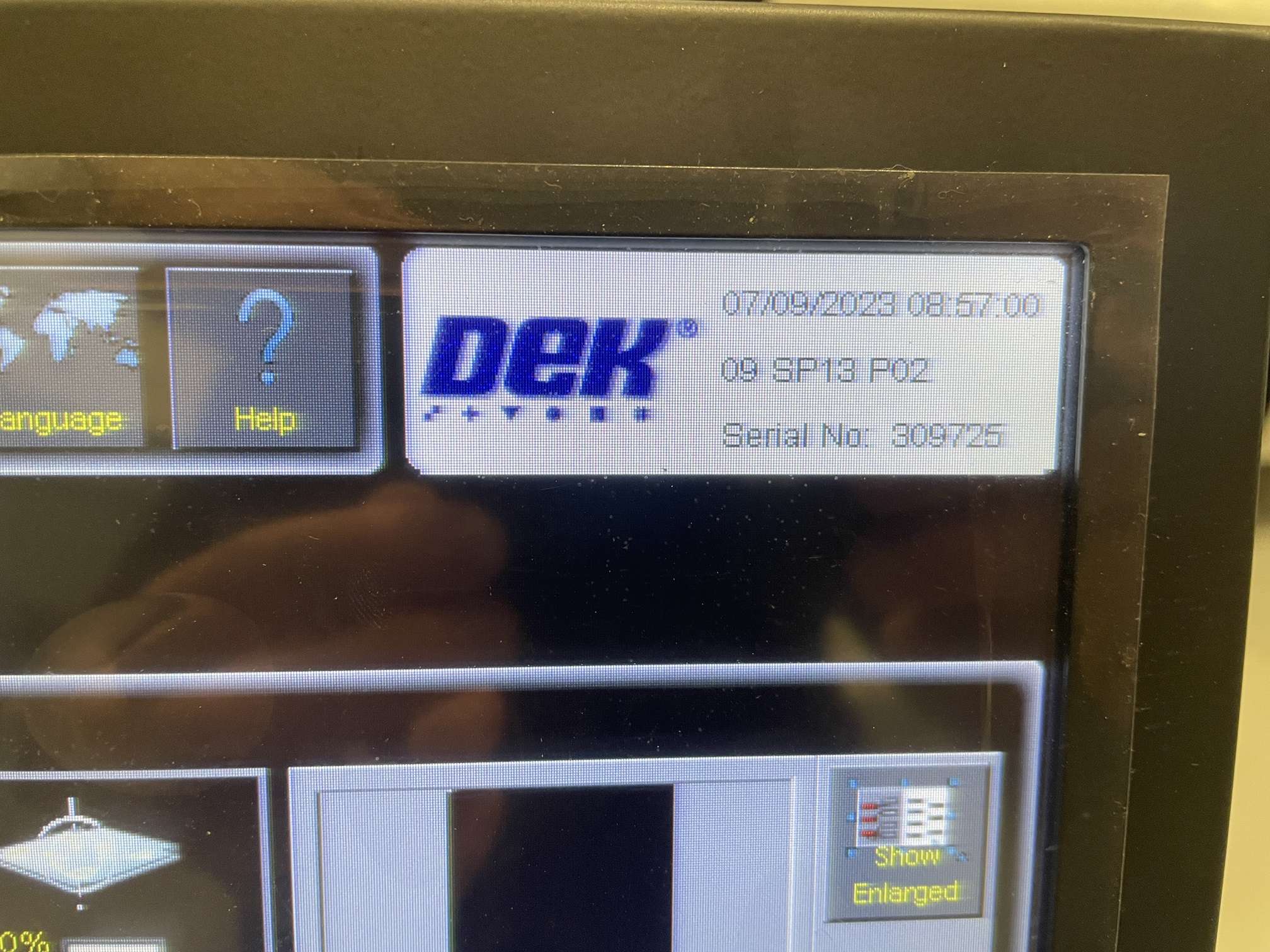

Serial Number: 309725

Year of Manufacture: 2015

Direction: Left to Right/ Right to Left

Total Board Produced: 017291

Maximum Print Area (mm): 510 x 508.5

Camera: Hawkeye 750 Digital Camera (without licence)(Graphite camera)

Camera Positioning: Rotary motors and encoders with 4 microns resolution

Squeegee Pressure Mechanism: Software controlled, motorised

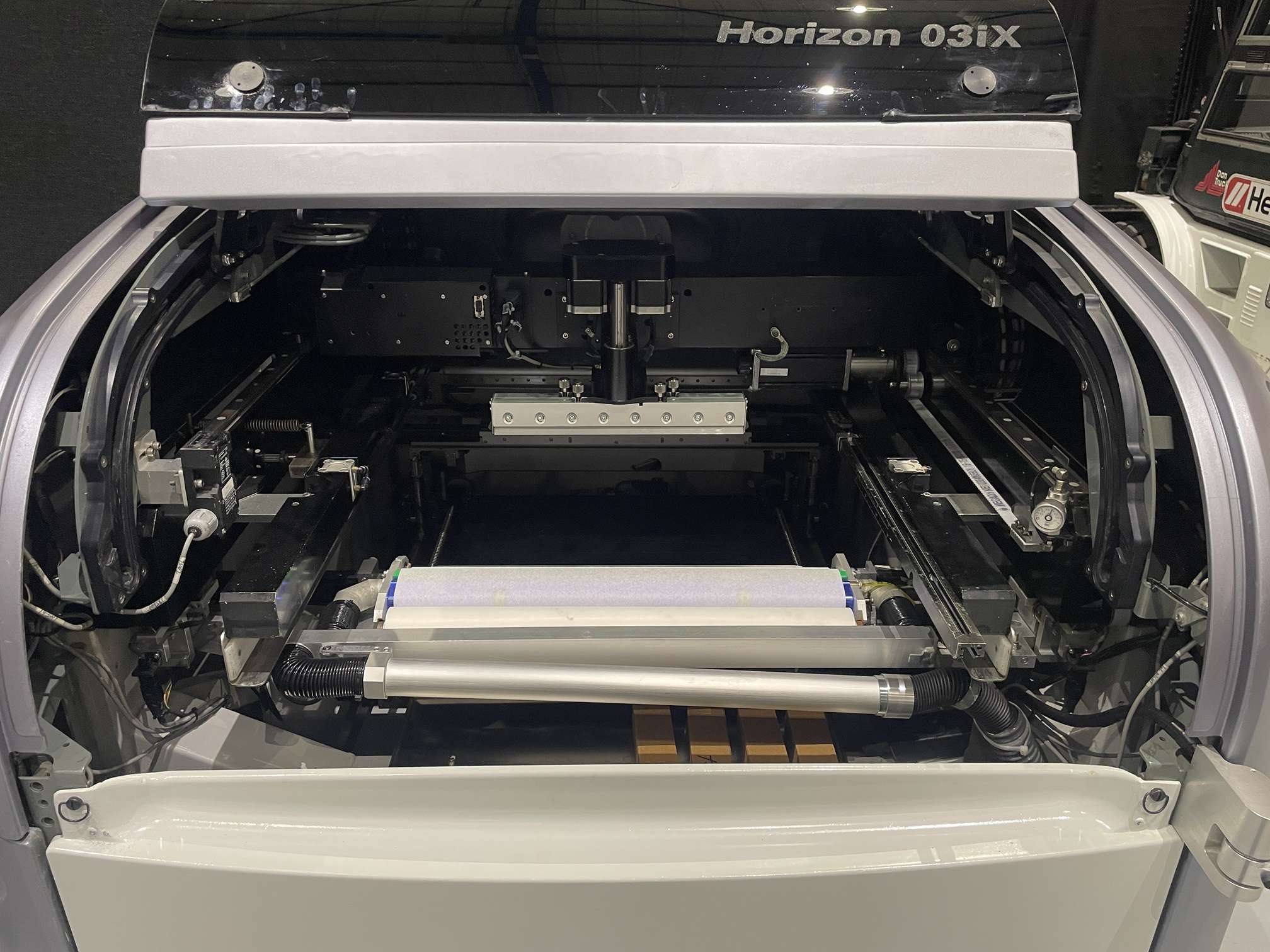

Under Stencil Cleaning: Blue Under Stencil Cleaner, fully programmable with wet/dry/vacuum wipe with external solvent tank

Vacuum Pump

Support Pins Included

Voltage: 230V, 50/60Hz, 1 Phase

Air Pressure: 5-8 Bar

Dimensions (mm): 2060 x 1500 x 1570

Weight: 800Kg

DEK Horizon 03IX full-automatic solder paste printing machine multifunctional plate handling device can automatically position and clamp PCB of various sizes and thickness, with removable magnetic thimble and side clamp device, effectively overcome the deformation of the plate, ensuring uniform printing process.
