Description

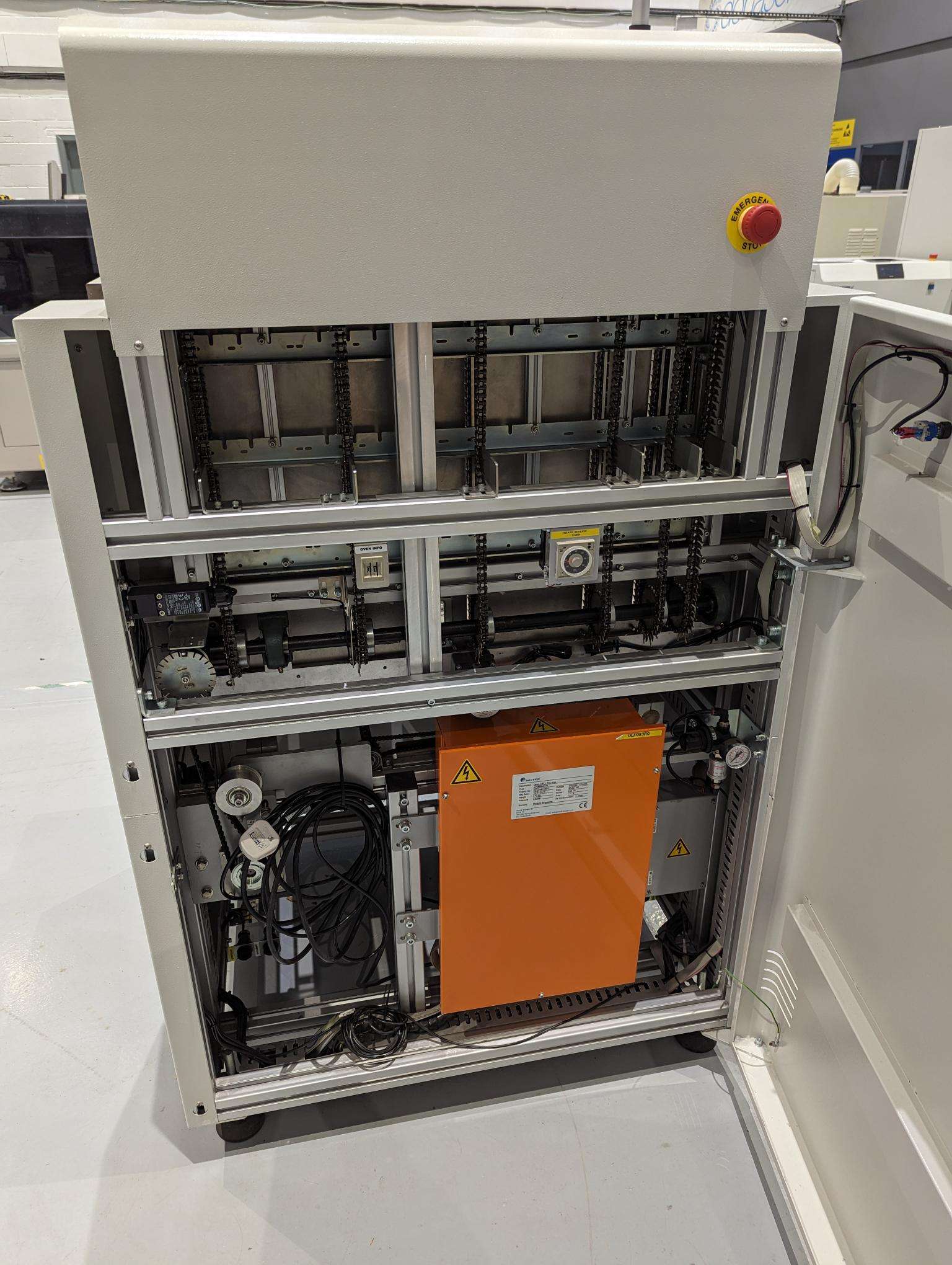

Nutek Open LIFO, XXL-size

Type: NTM650SXXL

Serial Nr.: 2012-0810E01

Year of Manufacture: 2013

Direction: Left to Right

Transfer height: 900mm (+/-25mm)

PCB size: 50 – 535mm (W)/ 80 -850mm (L)

Product thickness: 0.60 – 1.60mm

Component Height: Top: 30mm max/ Below: 30mm max

Voltage: 220V, 50/60Hz

Pressure: 4-6 Bar

Air consumption: 2 L/min

Dimension (in mm): 950 (W) x 1000 (D) x 1620 (H)

Weight: 210Kg

Function:

This machine is capable of transferring a PCB in any of the 3 modes:

• Standard mode:

In standard mode the machine receives a PCB from Upstream machine and is transferred to Downstream machine when there is a board request from Downstream. If the downstream is busy, the PCB is stacked inside the stocker and is released to Downstream machine when the Downstream machine is available.

• Reject mode:

In reject mode, the machine receives either “good” or “bad” PCB from Upstream machine. When a “good” PCB is received, the PCB will be transferred to Downstream machine before accepting the next PCB from the Upstream machine again. On the other hand, when a “bad” PCB is received, it will be stacked inside the stocker unit and manually removed by operator once the stocker is full.

• Bypass mode:

In bypass mode, the machine acts as a link between Upstream and Downstream machine. A PCB is transferred from Upstream machine and is transferred to Downstream machine during each cycle of operation.
